DJI M600 and Geo-MMS VLP-16 LiDAR – Rental

This item is available as a custom configuration.

To Purchase or for lease terms
please ask for a







Available as New, Used and Rental.

Click to Rent or Buy New or Used

Out of stock

Compare

Share this product

Description

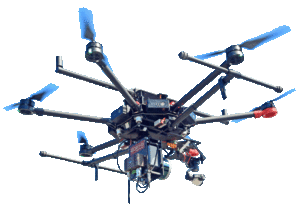

M600

The Matrice 600 (M600) is DJIs new flying platform designed for professional aerial photography and industrial applications. It is built to closely integrate with a host of powerful DJI technologies, including the A3 flight controller, Lightbridge 2 transmission system, Intelligent Batteries and Battery Management system, for maximum performance and quick setup.

  • DJI M600 – If interested in purchasing new or used, contact us for all pricing and package options.
  • Hovering Accuracy (P-Mode, with GPS) Vertical: 0.5 m, Horizontal: 1.5 m
  • Max Angular Velocity Pitch: 300/s, Yaw: 150/s
  • Max Pitch Angle 25
  • Max Speed of Ascent 5 m/s
  • Max Speed of Descent 3 m/s
  • Max Wind Resistance 8 m/s
  • Max Flight Altitude above Sea Level 2500 m
  • Max Speed 18 m/s (No wind)
  • Hovering Time (with six TB47S batteries)* No payload: 35 min, 6 kg payload: 16 min
  • Hovering Time (with six TB48S batteries)* No payload: 40 min, 5.5 kg payload: 18 min* The hovering time is based on flying at 10 m above sea level in a no-wind environment and landing with 10% battery level.

Lidar Sensor

The Lidar Sensor, a MMS VLP-16, together with the M600 make data collection possible and simple in a wide range of industries, providing you with real-time updates on whatever it is you need to scan.

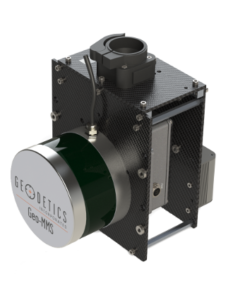

Geo-MMS Tactical Series

  • Available with the following LiDAR Sensors
    • Velodyne VLP-16
    • Velodyne HDL-32
  • Dual-Antenna Configuration
  • High-Performance Quartz MEMS IMU
  • Internal High-Performance GNSS Receiver
  • Internal Data Recorder
  • Includes Cables and Antennas
  • Includes LiDARTool Direct Georeferencing Software
  • Includes VYO Real-Time Viewer
  • Compatible with Geodetics’ RTK and PPK Bundles

* Shown installed in Geo-MMS Mounting assembly available separately

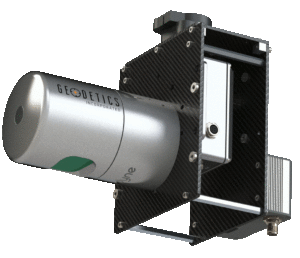

Geo-MMS Advanced Series

  • Available with the following LiDAR Sensors
    • Velodyne VLP-16
    • Velodyne HDL-32
  • Dual-Antenna Configuration
  • High-Performance Fiber Optic Gyro IMU
  • Internal High-Performance GNSS Receiver
  • Internal Data Recorder
  • Includes Cables and Antennas
  • Includes LiDARTool Direct Georeferencing Software
  • Includes VYO Real-Time Viewer
  • Compatible with Geodetics’ RTK and PPK Bundles

* Shown installed in Geo-MMS Mounting assembly available separately

Real-Time Kinematic (RTK) Bundle

  • 900 Mhz Radio Pair
  • Reference Receive

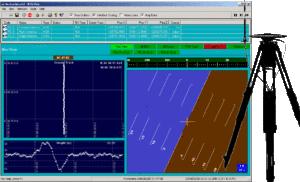

Post Processing Kinematic (PPK) Bundle

  • RTD-Post Post Processing Solution
  • Reference Receiver

DJI M600

12 TB48 Batteries

GEO-MMS VLP-16 LiDAR Sensor
